Product Description:

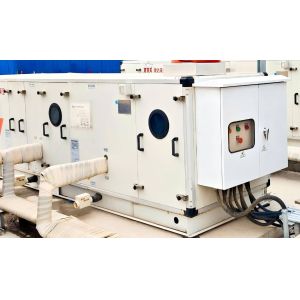

The Constant Temperature and Humidity Air Conditioner is a highly
advanced climate control system designed to provide precise
environmental regulation for a variety of industrial and commercial
applications. With a heating capacity ranging from 20,000 to
368,000 BTU, this air conditioner delivers powerful and efficient
temperature maintenance, ensuring that indoor spaces remain
comfortable and stable regardless of external weather conditions.
Its robust performance is supported by a reliable power supply of
380V/50Hz, making it suitable for large-scale operations that
demand consistent and uninterrupted functionality.
Technical Parameters:
| Model | JDHWJ Series |
| Size | Customizable |
| Temperature Range | 18~29 °C |
| Humidity Range | 45-78% |
| Dehumidifying Function | Yes |
| Cooling Capacity | 27650-768150 BTU |
| Heating Capacity | 20000-368000 BTU |
| Refrigerant | R-22 (R407C) |
| Power Supply | 380V / 50Hz |
| Air Volume | 1560 m³/h - 42000 m³/h |
Outdoor Unit Features:- High precision controller.
- Adopted imported temperature and humidity sensors,micro-computer
control system and electrode-type humidifier.
- Filters with different filtration efficiencies can be configured at
the air inlet and outlet according to customer requirements.
- Heating: The standard configuration is electric heating; steam
heating or hot water heating can be selected according to user
requirements.
- Humidification: The standard configuration is electrode-type
humidification; steam humidification can be selected according to
user requirements.
Applications:
The Jetex JDHWJ Series Constant Temperature and Humidity Air
Conditioner is an advanced solution designed to maintain precise
environmental conditions in a variety of settings. Originating from
Panyu Guangzhou, this split type air handling unit offers a
temperature range of 18~29 °C, ensuring optimal comfort and
stability. Its powerful air volume capacity, ranging from 1560m³/h
to 42000m³/h, makes it suitable for both small and large-scale
applications.
Customization:
Jetex offers customized product solutions for the JDHWJ Series
constant temperature and humidity air conditioner, designed to meet
diverse environmental control needs. Originating from Panyu
Guangzhou, this split type unit provides a wide cooling capacity
range of 27,650 to 768,150 BTU and a heating capacity of 20,000 to
368,000 BTU, ensuring optimal performance in various settings.
